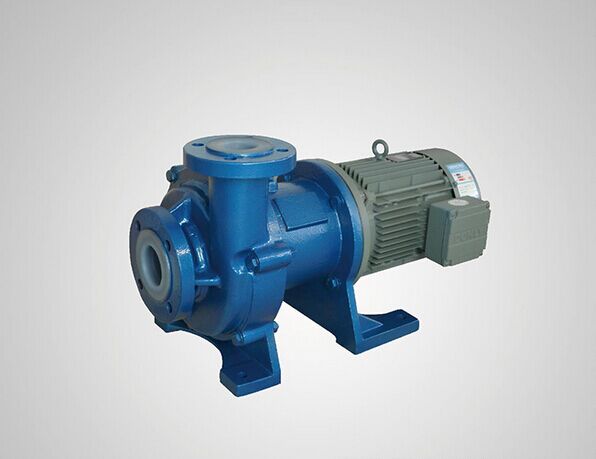

PTFE Lined Magnetic Pump | CQB Series

PTFE Lined Magnetic Pump can work for all chemicals and corrosive liquids. However, magnetic pump cannt allow many solids in the pumped liquids. This pump is suitable for clean liquids. CQB type PTFE Lined Magnetic pump has heavy-duty model like mechanical seal type centrifugal pump also. So this model of magnetic drive pump can be operated for a wide range of working points and it can be working continuously. The main structural materials of the pump are lined with cast iron. The purpose is to improve mechanical strength.

Magnet drive designs have become the standard for applications requiring corrosion resistant pumps. Our CQB type magnet drive pump designs offer a wide range of capabilities. Ranges are from compact size to our large size chemical process pump series. This broad range of magnetic pump capabilities is unmatched in the industry making us the leader in magnet drive pump technology home and abroad.

Strong corrosion and heat resistance:

Our CQB type PTFE lined magnetic pump is made mainly in PTFE (teflon), PTFE based resin, SIC ,SSIC and so on. Especially, the SSIC can resist the hydrofluoric acid.
Main wetted parts for options: PTFE, FEP and PFA. Especially, the PFA allows high temperature liquids (up to 120˚C).
Firstly, FEP working temp: -20 deg.c-100 deg.c
Secondly, PFA working temp: -20deg.c-120deg.c
Thirdly, PTFE working temp: -20deg.c-120deg.c

Specifications (50/60Hz):

Discharge capacity range: 0.5 to 120m3/h
Head range: 25 to 55 m / 30 to 80 m
Main materials: FEP (tefon), PFA, PTFE and so on
Required power range: up to 45 kW
Liquid temperature range: up to 120˚C
Sealing method: Seal-less construction

Impeller Type:

Close type

Designed and Manufactured Standard:

ISO2858

Flanges Standard:

DIN 2501 PN16
ANSI B16.5 150LB and so on

Application:

Water treatment
Chemical processing
Food processing
Fluid handling needs and so on

Motors for Pump:

Siemens China Brand, Wannan China Brand, ABB China Brand (Furthermore, we can supply the motor brand as per customer request)
