Horizontal Centrifugal Pump
> NM Chemical Centrifugal Pump
|
PP Chemical Pump equivalent to Friatec CPDR
 |

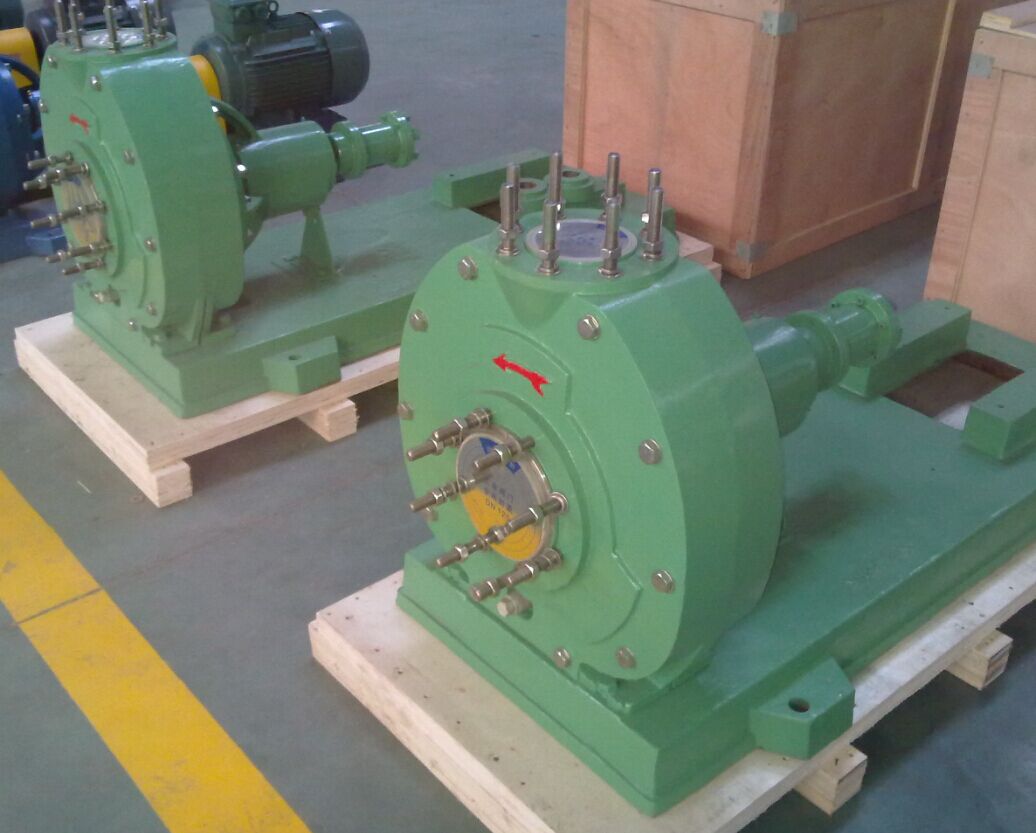

NM type Standardized PP Chemical Pump(100% interchangeable with Friatec RCNKU and CPDR pumps)
Applications:
Applications:
The NM pump series is excellently suited to pumping tasks in the chemical industry, electroplating plants, metallurgical industries, steel and stainless steel pickling lines, evaporation and regeneration units, wet flue gas cleaning systems downstream of waste incinerators as well as in exhaust air scrubbing and industrial waste water treatment.
Materials:
The chemical pumps are available in PP, PE-UHMW as well as PVDF.
Performance data:
Pump capacity:
up to 1200 m³/h
Total differential head:
up to 100 m
Operating temperature [t]:
-20°C up to +120 °C
Operating pressure [p]:
up to 10 bar
Diameter of discharge nozzle:
DN 25 up to DN 300
Drive rating [P]:
up to 220 kW
|
|
